Description

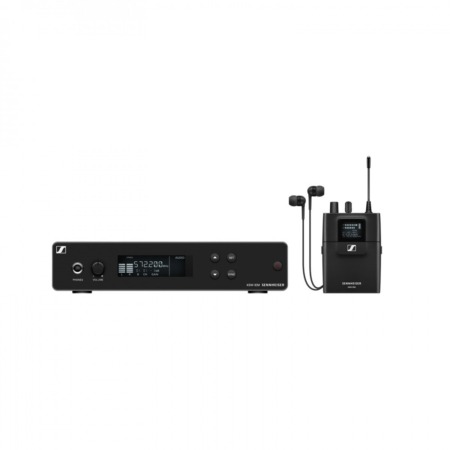

The Sennheiser XSW IEM SET Wireless In-Ear Monitor System, E Band is a wireless monitoring system that gives you accurate sound on stage. For many musicians, hearing yourself when playing live can be a significant challenge and the ability to do so – or not – can really make or break a performance. The Sennheiser XSW system gives you everything you need to cut through the mix and hear your own performance clearly.
This system wirelessly sends your sound from its static transmitter to a lightweight beltpack receiver, so you can perform uninhibited. Providing incredibly clear, detailed sound through its included IE 4 headphones, you can pick out every nuance of your performance, and hear exactly as much of yourself and any accompanying musicians as you need to.
The XSW IEM set is the perfect upgrade from a starter system, or as a fully-featured entry point into wireless monitoring. Advanced features such as EQ, limiting, and focus mode, you can customise your sound to ensure everything sounds exactly right to your ears. Put yourself front and centre in the mix, and hear your show as your audience does. Fully expandable, the XSW IEM set will provide monitoring for just yourself, or an entire band by letting you connect up to 12 receivers to a single transmitter.
Key Features
823.2 – 831.8 MHz wireless operating frequency
Clear sound with IE 4 monitoring earphones
Personal mix customisation with EQ and limiter
Focus mode for instrument spotlighting
Rock-solid UHF stability for uninterrupted performance
Specifications
XSW Transmitter Specifications
Modulation: FM Stereo
Frequency Band (max. RF output power): 823.2 – 831.8 MHz (30 mW)
Switching Bandwidth: Up to 24 MHz
Nominal/Peak Deviation: ±15 kHz/± 24 kHz
Antenna Output: BNC socket, 50 Ω
AF Frequency Response: 45 Hz to 15 kHz
AF Input: 2 x XLR-3/1/4″ (6.3 mm) jack combo socket, electronically balanced
Total Harmonic Distortion (THD): <0.9%
Signal-to-Noise Ratio: ≥88 dB
Temperature Range: 0°C to + 40°C
Input Rating: +12 V DC
Current Consumption: Approx. 400mA (depending on volume level)
Dimensions: 200 x 128 x 42 mm
Weight: Approx. 700 g
Receiver Specifications
Modulation: Wideband FM
Switching Bandwidth: Up to 24 MHz
Nominal/peak Deviation: ±15 kHz/± 24 kHz
Squelch: 10 μV, fixed
Signal-to-Noise Ratio (1 mV, peak deviation): ≥88 dB
Total Harmonic Distortion (THD): ≤ 1%
AF Output Level at 3.5 mm: 2 x 1.25 V at 16 Ω
High Boost (EQ): +10 dB at 13 kHz
Limiter: -10 dB
AF Frequency Response: 45 Hz to 15 kHz
Cross Talk (50 Hz – 10 kHz): Typically 45 dB
Temperature Range: 0°C to + 40°C
Power Supply: 2 AA batteries, 1.5 V
Nominal Voltage: 3 V battery
Operating Time: Approx. 6 hours (depending on volume level)
Dimensions: Approx. 95 x 70 x 26 mm
Weight (including batteries): Approx. 110 g
