Description

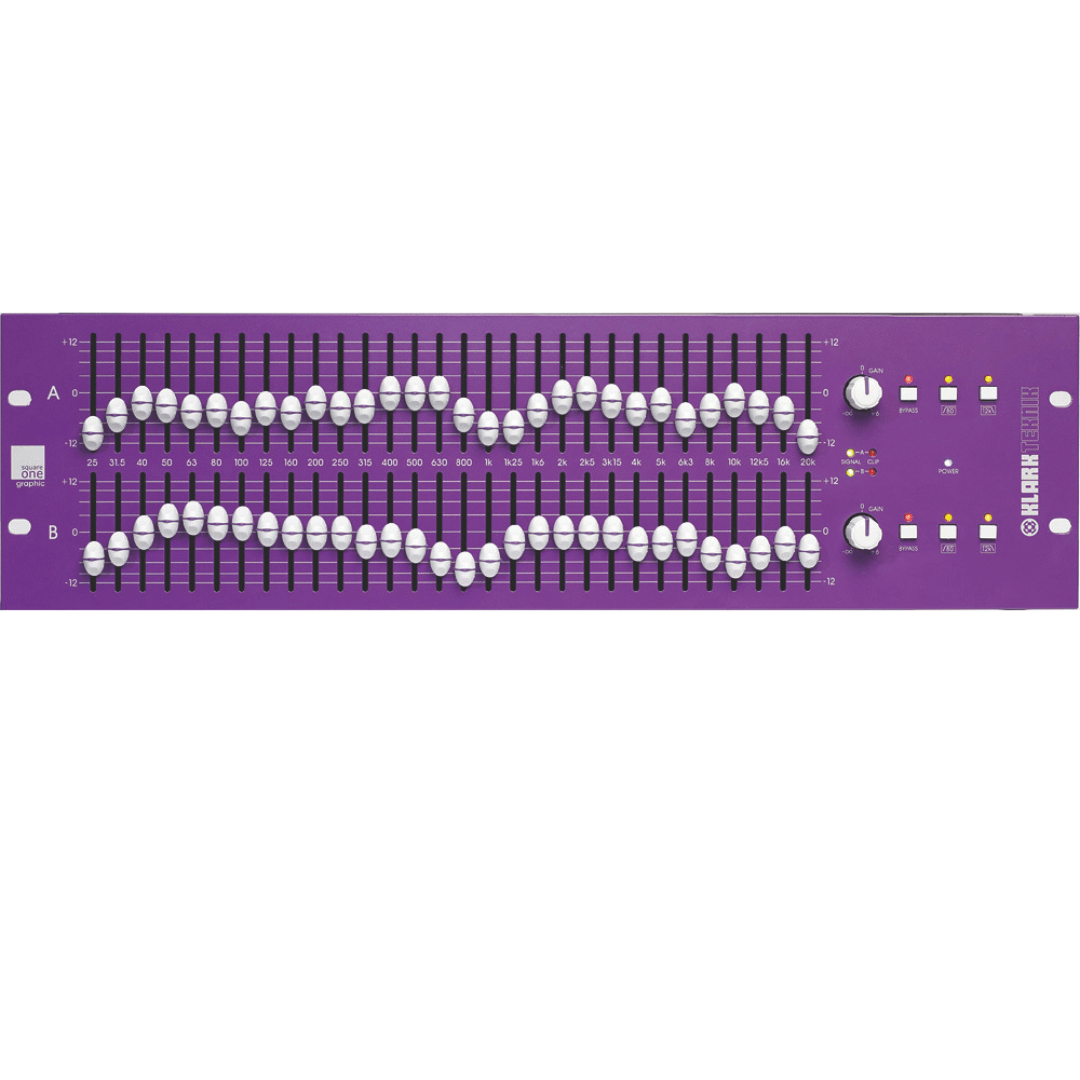

The Square ONE graphic represents 30-years of Klark Teknik’s design expertise, offered at a more accessible price point, bringing superb audio performance within reach of the most budget-sensitive applications.
features: Frequency Response: +/- 0.5dB (20Hz-20kHz) Distortion: (THD+N) 112 dB (20Hz-20kHz unweighted) One fixed second-order high pass filter with an 80 Hz corner frequency and one fixed second-order low pass filter per channel with a 12 kHz corner frequency Has an equalisation section by-pass and shall be fail-safe to return automatically to the by-pass condition in the event of power supply interruption Centre-detented slide potentiometers arranged to give a graphical display of frequency plotted against level The slide potentiometers have protective covers to inhibit the ingress of dirt and dust All audio connections are electronically balanced and use XLR and 1/4″ TRS jack connectors Capable of operating from a 100-240V +/- 10% 50/60Hz a.c. power source 45 mm long-throw faders with integral dust guards for maximum accuracy and resolution Signal present & Clip LEDs Dimensions (HxWxD): 133 mm (5.25″) x 482 mm (19″ inch) x 205 mm (8 inch) Weight: 4.4 kg
